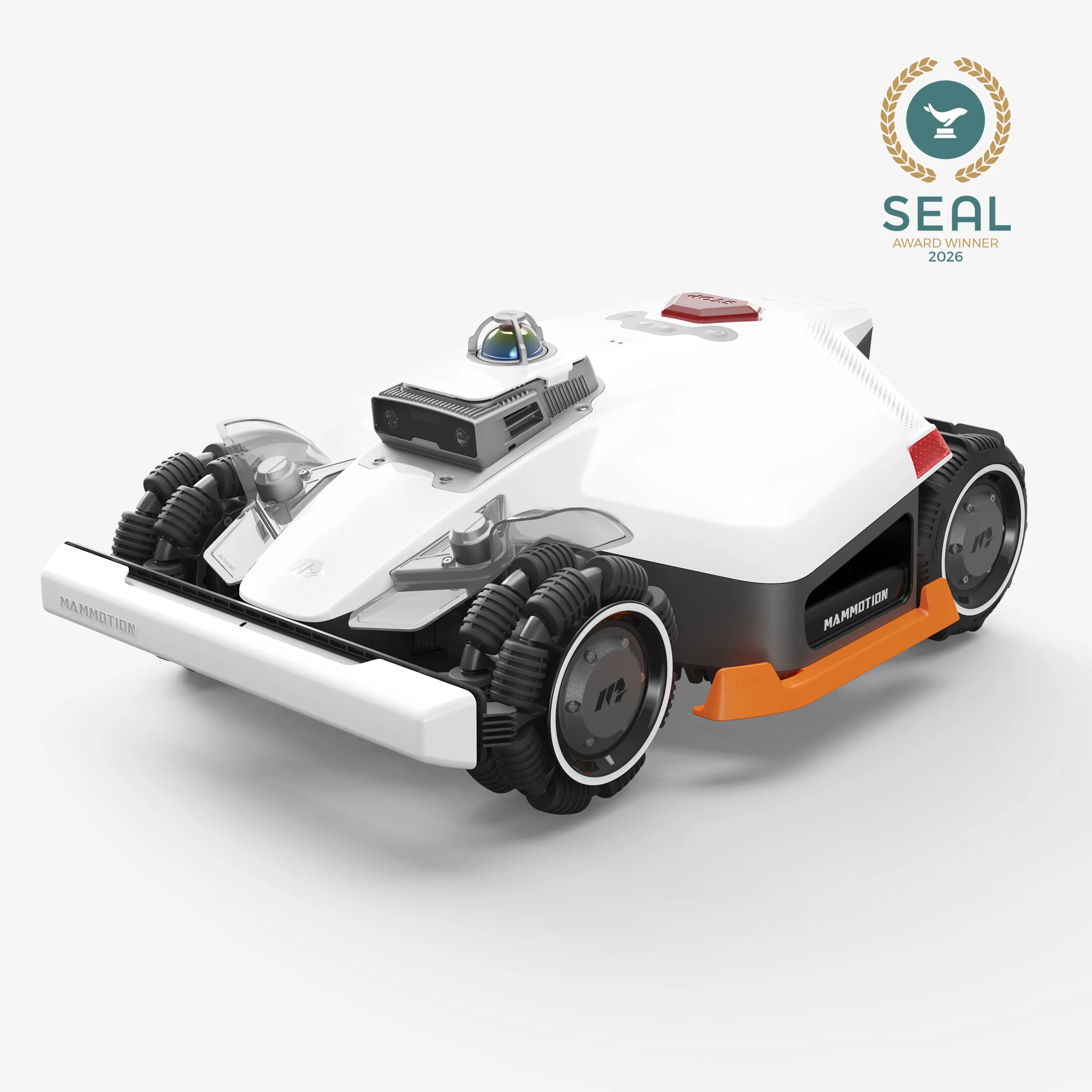

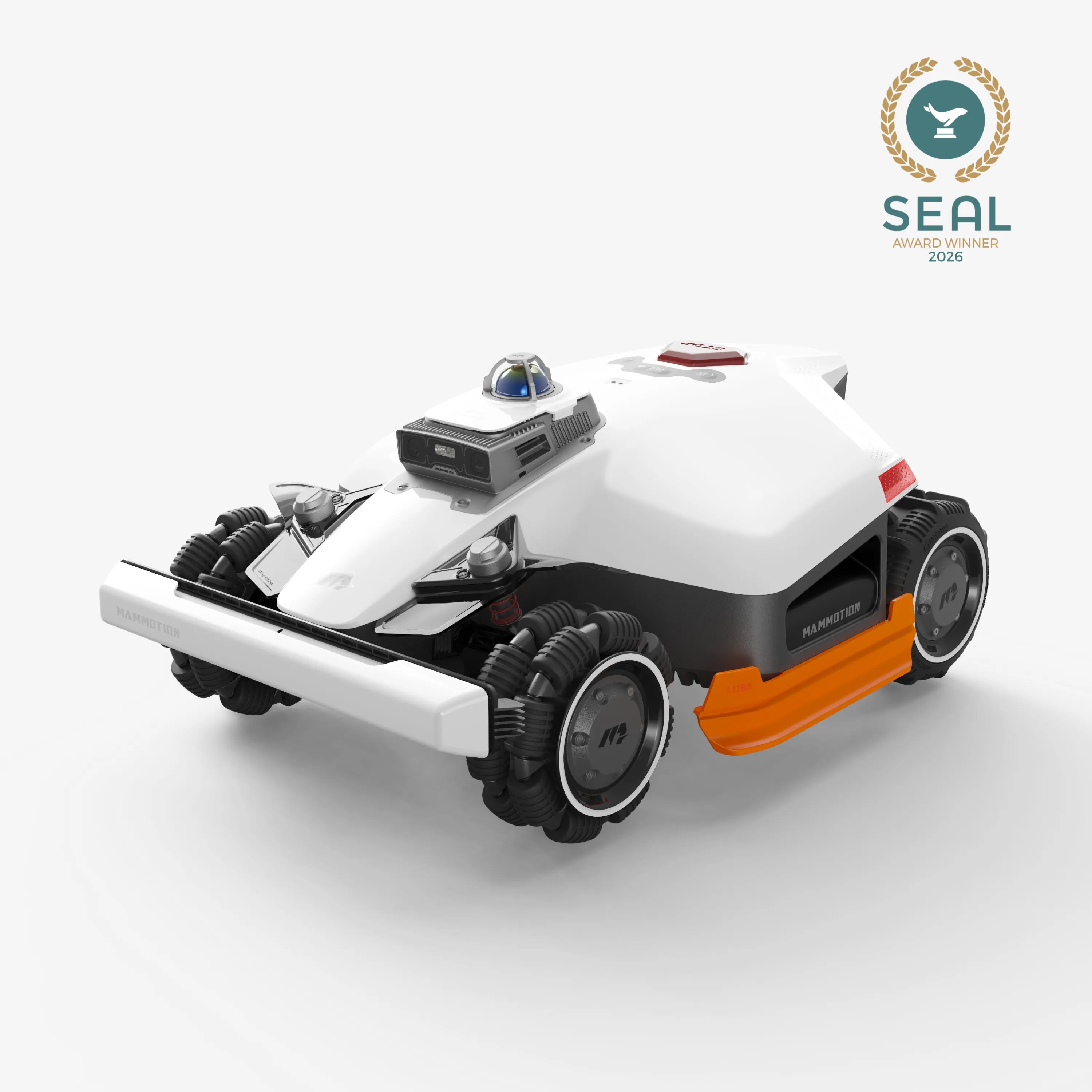

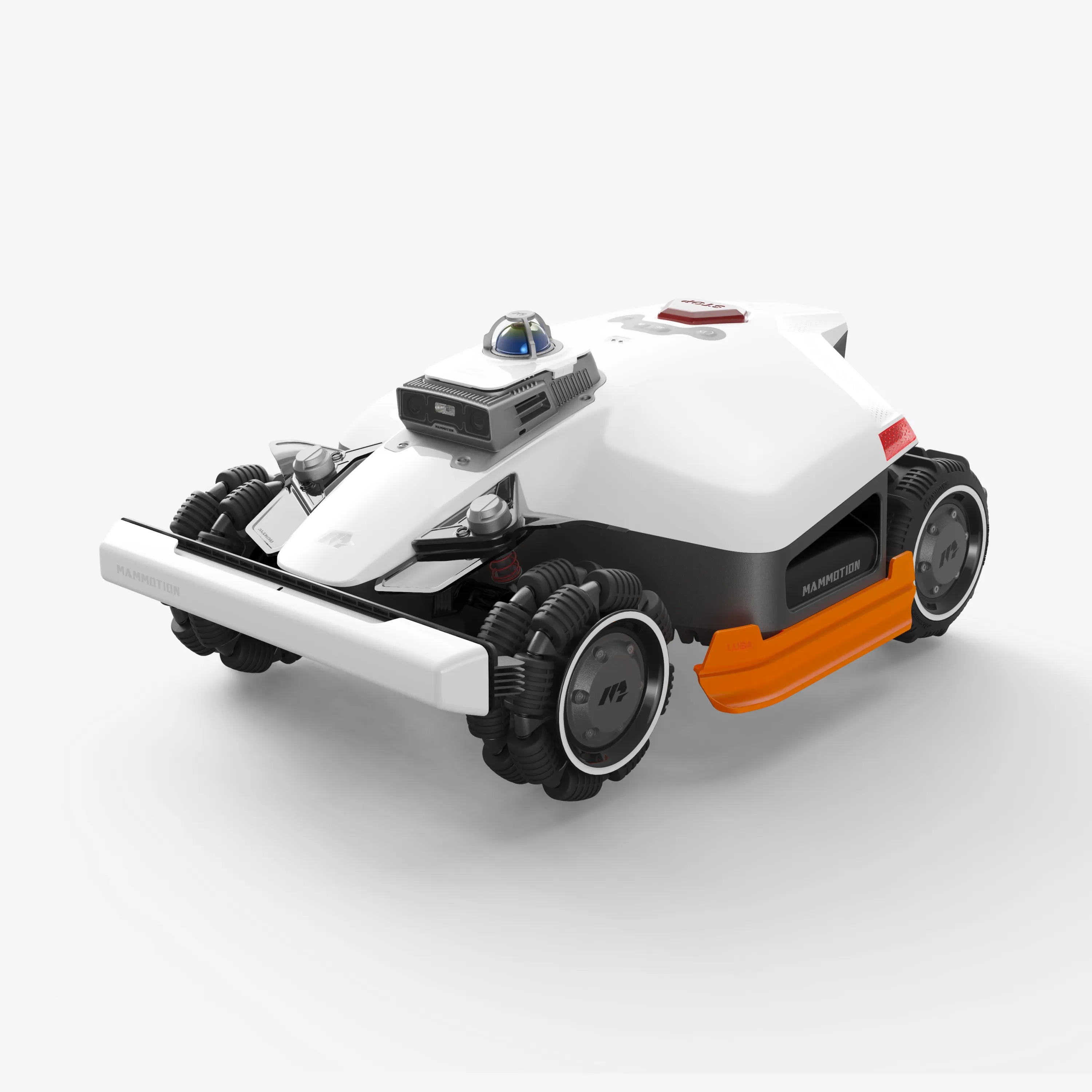

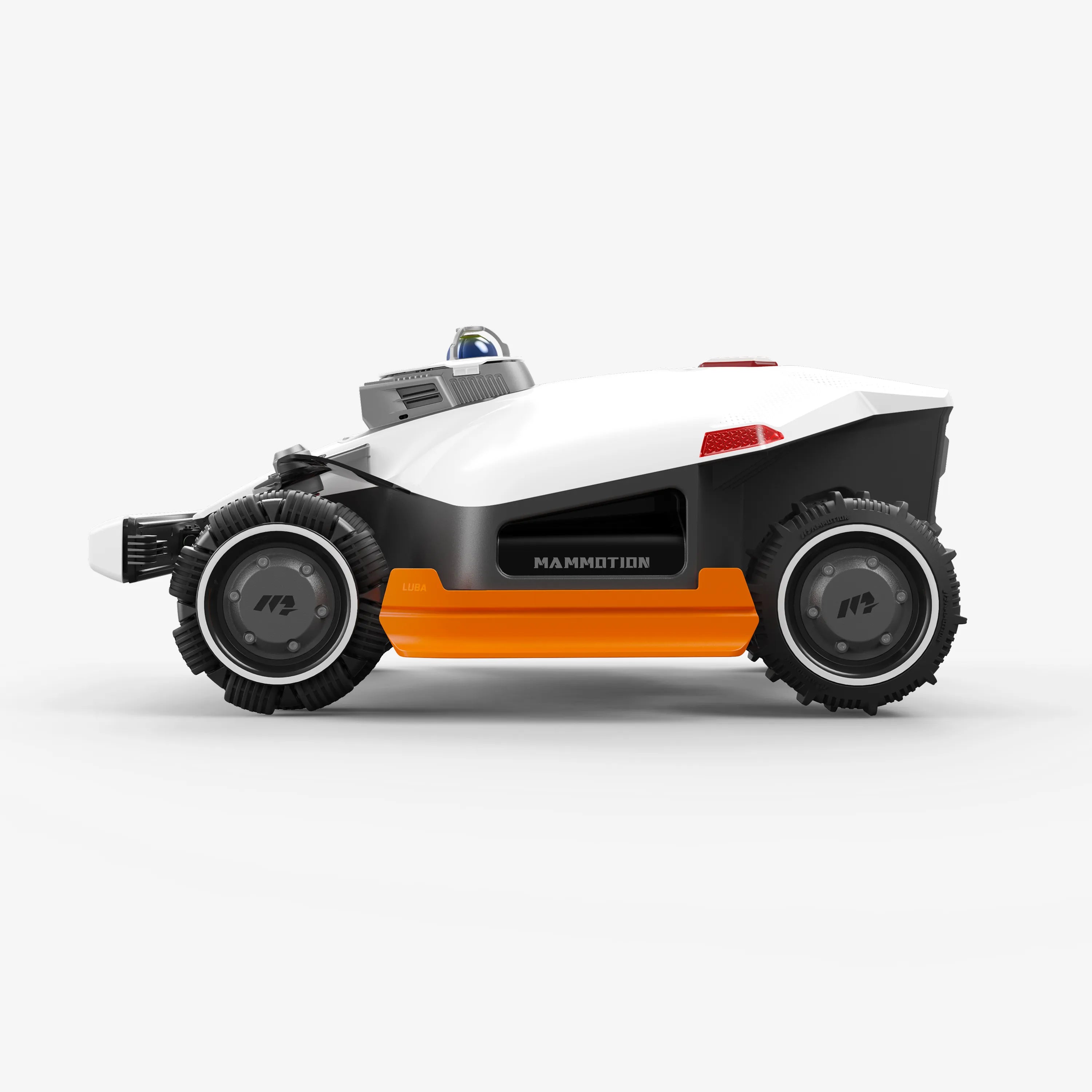

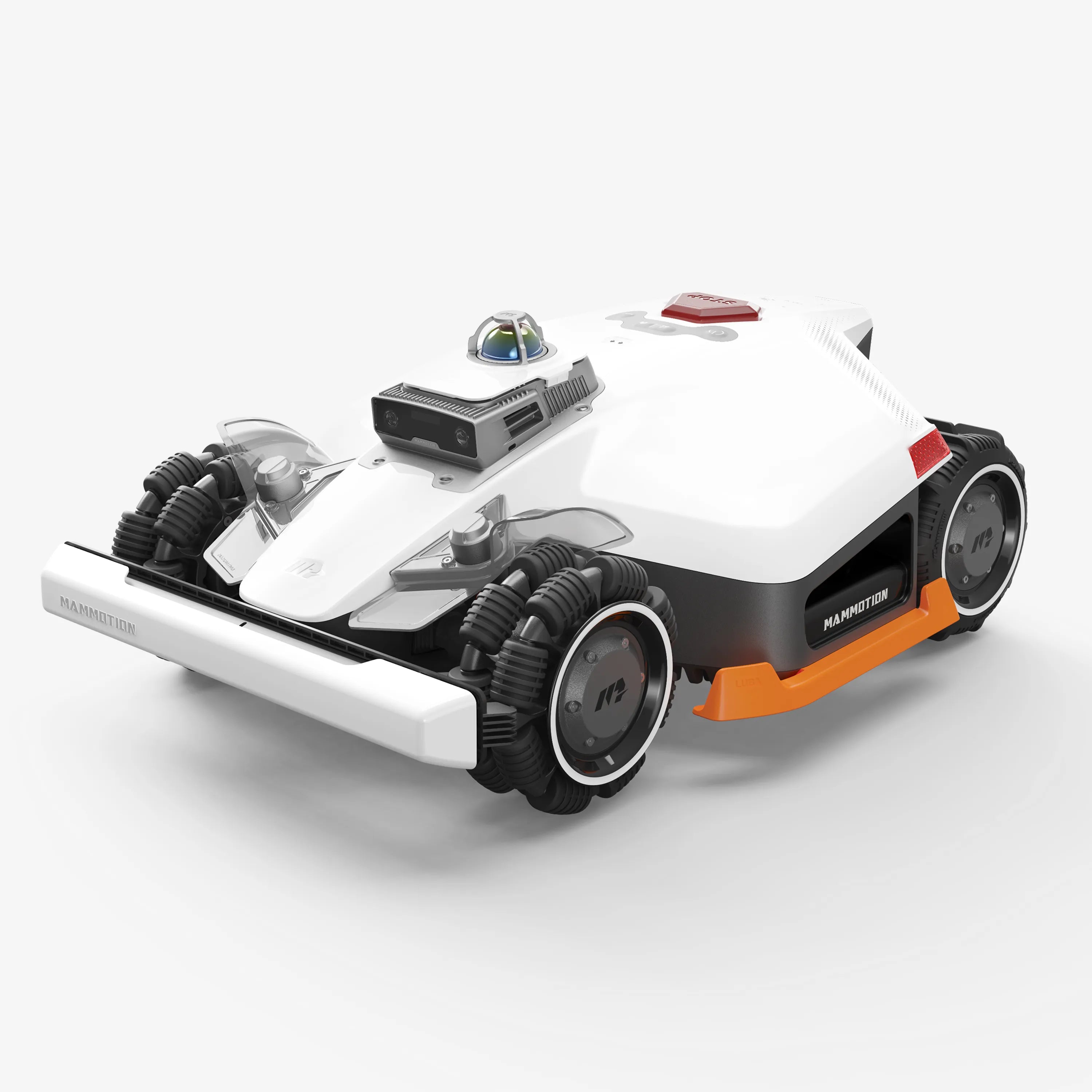

The Mammotion LUBA 3 AWD is the most advanced perimeter wire-free robot lawn mower available today. No boundary wire installation, no RTK antenna setup hassle on the 3000 and 5000 models, and no compromise on navigation accuracy. The LUBA 3 AWD uses the world's first Tri-Fusion Positioning System — a combination of 360-degree LiDAR, NetRTK correction, and Dual-Camera AI Vision — to navigate your lawn with plus or minus 1 centimeter precision in any weather, any terrain, and day or night.
Available in three coverage sizes — 0.37 acre (1500), 0.75 acre (3000), and 1.25 acres (5000) — and two cutting height versions (Standard 1.0 to 2.7 inches and High 2.2 to 4.0 inches), the LUBA 3 AWD is engineered to match a wide range of lawn sizes, grass types, and terrain complexity.
NO WIRE, NO PERIMETER INSTALLATION
Traditional robot mowers require hours of perimeter wire installation before a single cut can be made. The LUBA 3 AWD eliminates that entirely. Using its onboard LiDAR, NetRTK positioning, and AI Vision system, it maps your lawn digitally and navigates with precision without any physical boundary markers. Setup is app-based and significantly faster than any wire-based system.
The 1500 model uses 360-degree LiDAR plus Dual-Camera AI Vision for precise navigation on lawns up to 0.37 acre. The 3000 and 5000 models add NetRTK correction to the full Tri-Fusion stack for enhanced positioning accuracy on larger and more complex properties.
TRI-FUSION POSITIONING SYSTEM — HOW IT WORKS
Developed by Mammotion Atlas Lab, the Tri-Fusion system integrates three complementary technologies that work together in real time:
360-degree LiDAR: Handles primary navigation with a detection range of up to 230 feet at 80 percent reflectivity and 130 feet at 10 percent reflectivity, across a full 360 by 59 degree field of view
NetRTK: Provides centimeter-level positioning corrections via network, compensating for GPS drift in real time
Dual-Camera AI Vision: Enables rapid object recognition and intelligent obstacle avoidance independently of the LiDAR and GPS systems, ensuring the mower can respond to obstacles even when other sensors are momentarily limited
The result is a positioning system that delivers plus or minus 1 centimeter accuracy and seamlessly switches between sensor inputs based on conditions — maintaining reliable navigation in shade, under tree canopy, in rain, and at night.
AWD PERFORMANCE AND SLOPE CAPABILITY
All-wheel drive is standard across every LUBA 3 AWD model — not an upgrade. The four-wheel drive system delivers 80 percent slope climbing capability, equivalent to a 38.6-degree incline. Enhanced suspension keeps all four wheels in contact with the ground on uneven terrain, maintaining stability and cutting consistency on surfaces that would challenge two-wheel drive alternatives.
At 41 pounds the LUBA 3 AWD is lightweight enough to avoid compacting or damaging grass, even on repeated passes across the same routes.
AI PROCESSOR AND OBSTACLE AVOIDANCE
The LUBA 3 AWD's upgraded AI processor delivers 10 trillion operations per second — double the processing power of the previous generation. This increased computational capacity translates directly to faster object detection, more accurate environmental analysis, and quicker response times when the mower encounters unexpected obstacles. The system is rated for more than 300 obstacle avoidance scenarios and handles common lawn hazards including pets, toys, garden furniture, and uneven terrain edges.
CUTTING SYSTEM

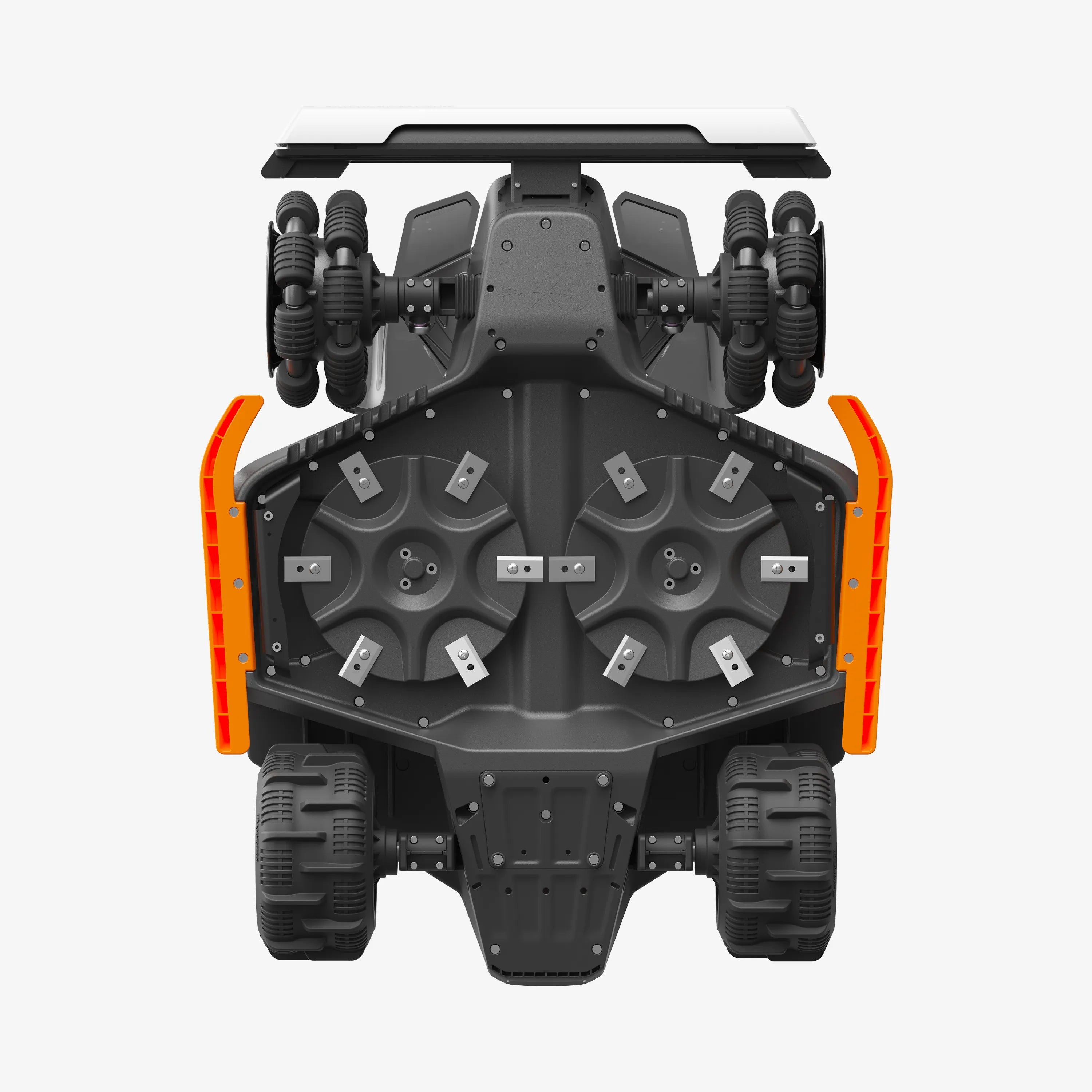

The LUBA 3 AWD uses dual cutting discs, each equipped with six pivoting razor blades, for a total cutting width of 15.7 inches per pass. Disc motor power is 88W on the 1500 model and 165W on the 3000 and 5000 models. The innovative chassis design prevents grass clogging under the cutting deck, and the dual disc layout maximizes cutting width for efficient coverage.
Cutting efficiency reaches up to 5,400 square feet per hour on the 3000 and 5000 models. Two high-torque disc motors work with the AI vision system to automatically adjust cutting speed and power based on grass density — maintaining optimal performance without manual intervention.
Cutting height is selectable by version:
Standard Version: 1.0 to 2.7 inches — suitable for Bermudagrass, Kentucky Bluegrass, and similar shorter-cut grasses
High Version: 2.2 to 4.0 inches — suitable for Tall Fescue, St. Augustinegrass, and similar taller-cut grasses
BATTERY AND RUNTIME
Battery capacity scales with model size to match coverage requirements:
LUBA 3 AWD 1500: 9.4 Ah — up to 135 minutes runtime, 90-minute charge time
LUBA 3 AWD 3000: 12 Ah — up to 175 minutes runtime, 120-minute charge time
LUBA 3 AWD 5000: 15 Ah — up to 215 minutes runtime, 145-minute charge time
The intelligent battery management system includes a configurable charge limit — charging to 80 percent during off-hours and topping to 100 percent before the next mow — extending long-term battery health. Off-peak charging scheduling reduces energy costs, and EcoSleep Mode saves up to 100 kWh per year compared to always-on standby operation.
SMART ZONE MANAGEMENT AND FLEXIBLE MAPPING
The LUBA 3 AWD supports up to 50 smart zones on the 5000 model (30 on the 3000, 15 on the 1500), allowing different cutting schedules, heights, and frequencies for different areas of the property — lawn, garden borders, pathway edges, and more. The app-based map editor lets you update zones, exclusion areas, and cutting paths at any time without reconfiguring hardware.
The mower fits through gaps as narrow as 27.6 inches, allowing access to gated areas, side yards, and narrow passages without manual intervention.
DROPMOW — NO-SETUP CUTTING MODE
DropMow allows the LUBA 3 AWD to operate outside its mapped area instantly — place it on any lawn surface and it begins cutting immediately, generating its own zigzag path, avoiding obstacles, and operating without boundaries or prior setup. This is particularly useful for temporary lawns, rental properties, neighbors' yards, or seasonal areas not included in the primary map.
CONNECTIVITY AND WEATHER RESISTANCE
Every LUBA 3 AWD includes a built-in 4G module with three years of free 4G data service and lifetime free iNavi intelligent navigation service. Connectivity also includes Wi-Fi and Bluetooth for local app control. The unit is rated IPX6 waterproof and includes automatic rain detection to pause mowing and return to the charging station during precipitation. Noise level is 70 dB or below during operation.
SPECIFICATIONS — BY MODEL
LUBA 3 AWD 1500
Max Lawn Coverage: 0.37 acre
Positioning: 360-degree LiDAR plus Dual-Camera AI Vision
Battery: 9.4 Ah
Runtime Per Charge: 135 minutes
Charge Time: 90 minutes
Mowing Efficiency: 4,300 sq ft per hour / 7,000 sq ft per charge
Max Smart Zones: 15
Cutting Disc Motor Power: 88W
RTK Reference Station: Not included
LUBA 3 AWD 3000
Max Lawn Coverage: 0.75 acre
Positioning: 360-degree LiDAR plus NetRTK plus Dual-Camera AI Vision (Tri-Fusion)
Battery: 12 Ah
Runtime Per Charge: 175 minutes
Charge Time: 120 minutes
Mowing Efficiency: 5,400 sq ft per hour / 0.35 acre per charge
Max Smart Zones: 30
Cutting Disc Motor Power: 165W
RTK Reference Station: Included
LUBA 3 AWD 5000
Max Lawn Coverage: 1.25 acres
Positioning: 360-degree LiDAR plus NetRTK plus Dual-Camera AI Vision (Tri-Fusion)
Battery: 15 Ah
Runtime Per Charge: 215 minutes
Charge Time: 145 minutes
Mowing Efficiency: 5,400 sq ft per hour / 0.42 acre per charge
Max Smart Zones: 50
Cutting Disc Motor Power: 165W
RTK Reference Station: Included
ALL MODELS — SHARED SPECIFICATIONS
Drive System: AWD four-wheel drive
Max Slope: 80 percent (38.6 degrees)
Cutting Width: 15.7 inches
Cutting Height — Standard Version: 1.0 to 2.7 inches
Cutting Height — High Version: 2.2 to 4.0 inches
Cutting Discs: 2
Blades Per Disc: 6 pivoting razor blades
LiDAR Detection Range: Up to 230 ft (80 percent reflectivity) / 130 ft (10 percent reflectivity)
LiDAR Field of View: 360 by 59 degrees
AI Processor: 10 trillion operations per second
Obstacle Avoidance: 300 plus scenarios
Min Gap Width: 27.6 inches
Net Weight: 41 lbs
Size S Version: 27.2 x 21 x 11 inches
Size H Version: 27.2 x 20.8 x 12.8 inches
Connectivity: 4G (3-year free), Wi-Fi, Bluetooth
4G Service: Built-in module, 3 years free data included
iNavi Service: Lifetime free
Waterproof Rating: IPX6
Noise Level: 70 dB or below
EcoSleep Mode: Saves up to 100 kWh per year

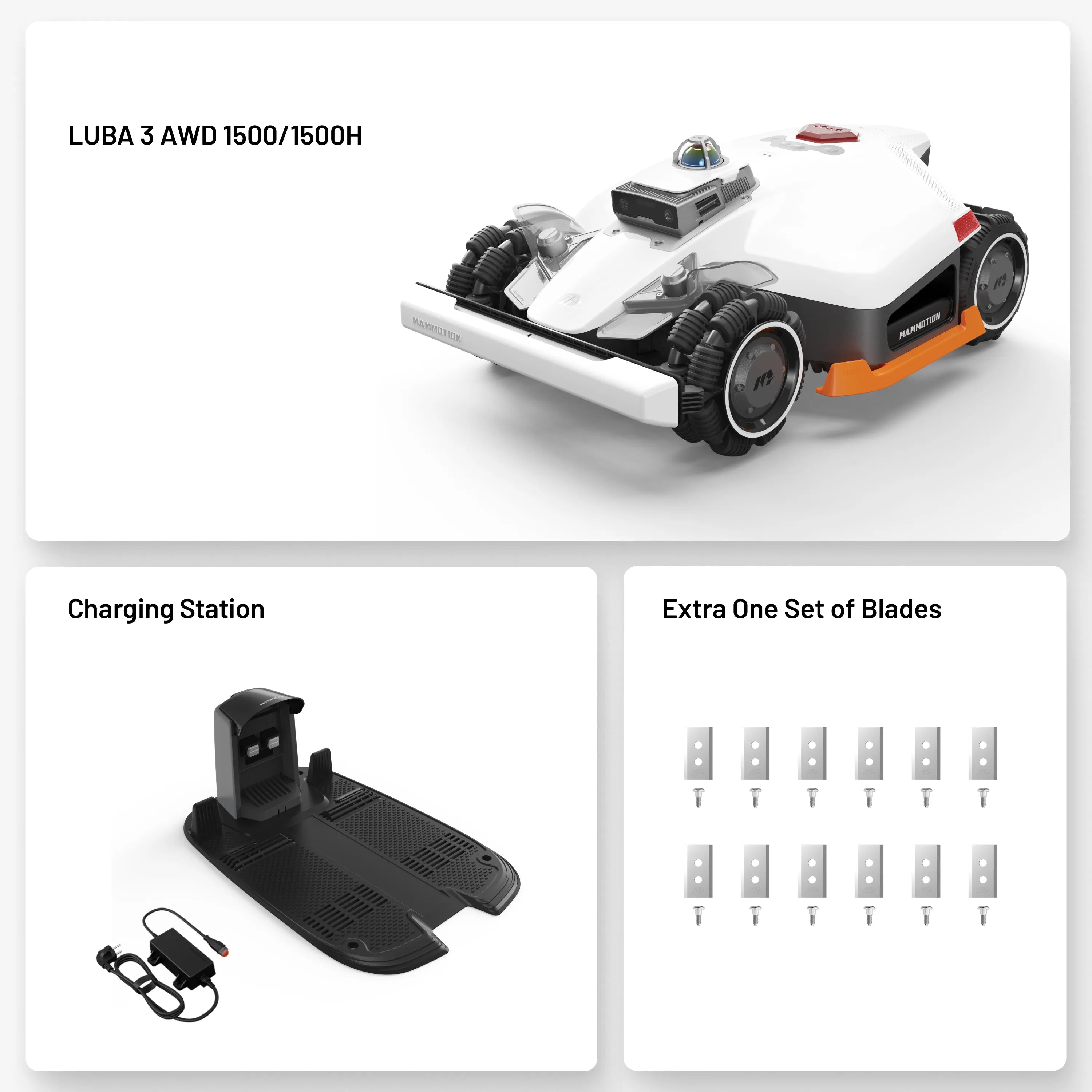

All models include:
LUBA 3 AWD robot lawn mower
Extra set of blades
Charging station
Charging station power supply
Ground pile
Free Garage Standard (valued at $209.00)

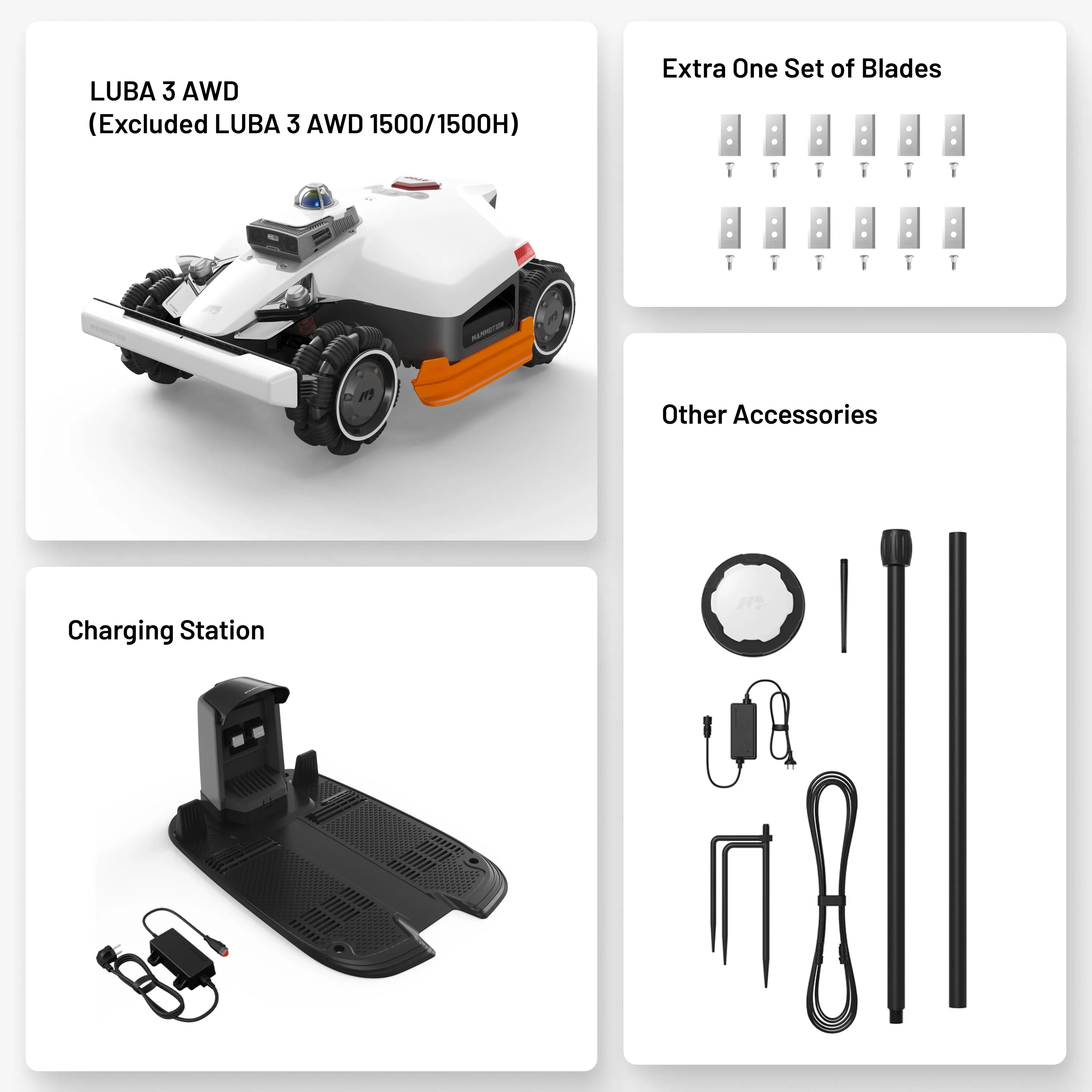

LUBA 3 AWD 3000 and 5000 additionally include:
RTK reference station
RTK antenna
RTK power supply
RTK extension cable, 10 meters
Note: The LUBA 3 AWD 1500 and 1500H do not include the RTK reference station, RTK antenna, RTK extension cable, or RTK power supply as these models use LiDAR plus AI Vision positioning rather than the full Tri-Fusion system.
Warranty: Mammotion provides a 3-year limited warranty on all LUBA 3 AWD models. Contact The Prime Pinnacle at support@theprimepinnacle.com or +1 (877) 477-2853 for warranty support.
