AQUAGLIDE LA JEFA TR — COMMERCIAL-GRADE AQUAPARK CENTERPIECE
The Aquaglide La Jefa TR is the most commanding structure in the Aquaglide aquapark lineup — a towering, multi-activity inflatable water park feature built for lakes, resorts, summer camps, and commercial waterfront operations. Standing nearly 20 feet tall and spanning over 50 feet in length, the La Jefa TR dominates any waterfront and delivers the kind of high-capacity, multi-level play that keeps guests coming back.
Designed to serve up to 12 adults and 12 children simultaneously, the La Jefa TR is engineered for high-traffic environments where safety, durability, and maximum play value are non-negotiable. Whether deployed as a standalone centerpiece or integrated into a larger Aquaglide aquapark circuit, it delivers unmatched presence and activity variety in a single structure.
WHAT RIDERS CAN DO ON THE LA JEFA TR
The La Jefa TR is built around four core activities that appeal to a wide range of ages and skill levels:

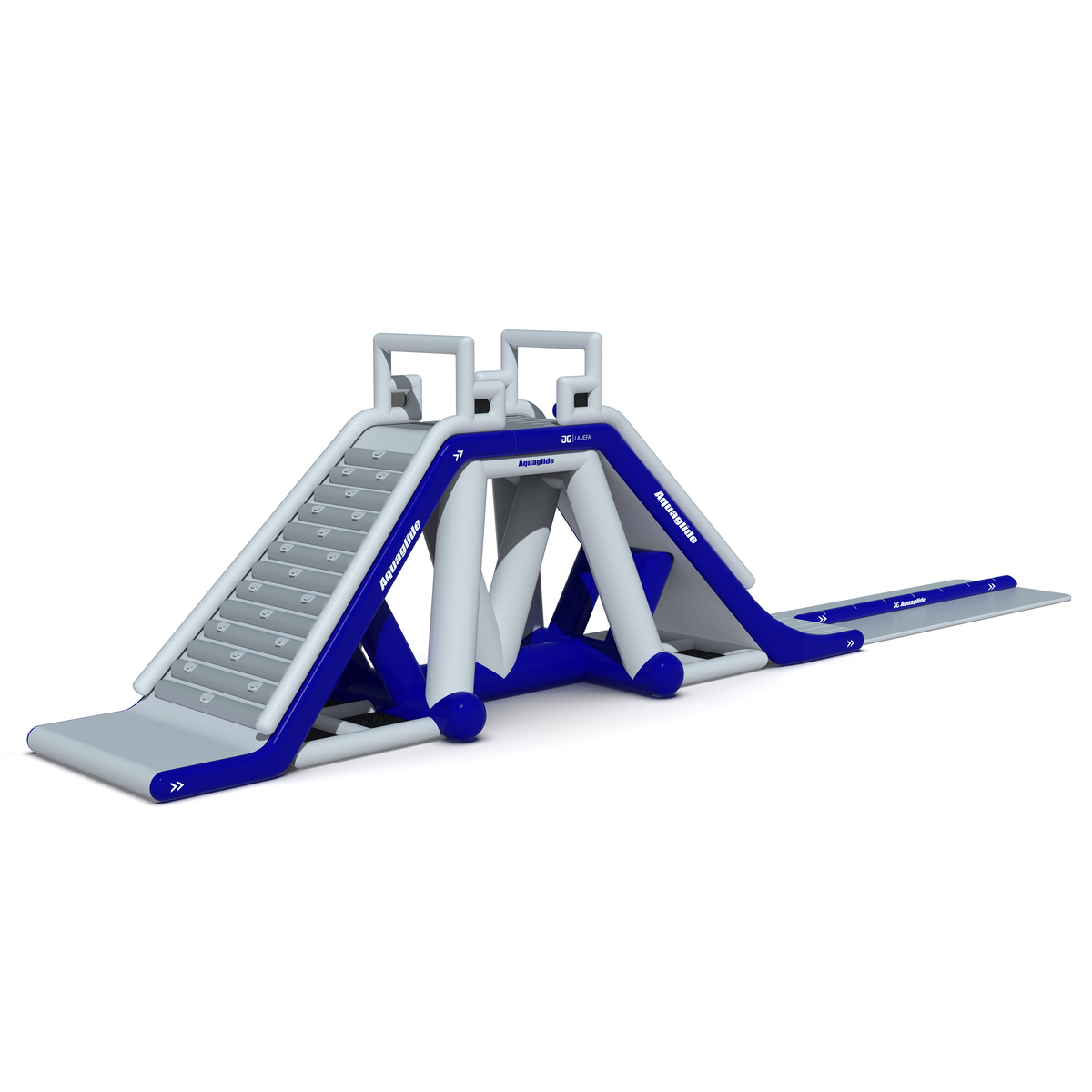

- Climb: An integrated novice climbing wall gives younger or less experienced users an accessible entry point to the structure
- Jump: Two dedicated jump stations at over 15.5 feet (4.73 meters) deliver the kind of heart-stopping drops that draw crowds and repeat riders

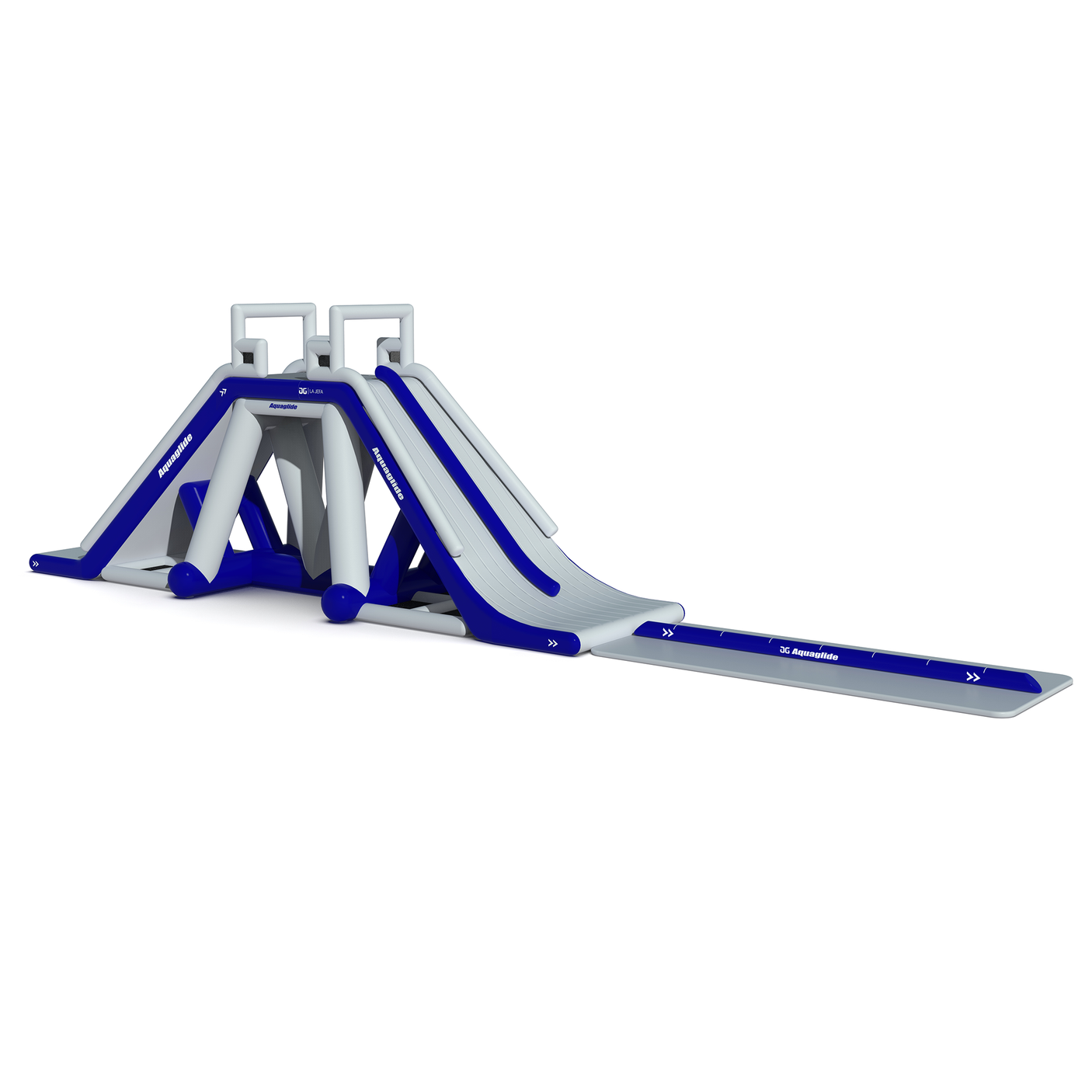

- Slide: A full-length slide with a built-in kicker feature at the base launches riders into the water with maximum momentum
- Cave: Two shaded cave areas give users a place to rest, gather, and cool down mid-session without leaving the structure
The multi-level layout means different activities run simultaneously without users getting in each other's way — a critical design consideration for commercial and resort operators managing high guest volumes.
CONSTRUCTION AND MATERIALS
The La Jefa TR is built to Aquaglide's commercial Cx3 standard — the same material and construction specification used across their commercial aquapark product line:
- Duratex Cx3: Premium 0.90mm / 31oz commercial-grade material optimized for durability, weld strength, and UV resistance
- Tritex Cx3: A uniquely textured version of Duratex that adds grip and cooling attributes on climbing and play surfaces
- Double I-Beam construction: Extra-reinforced welded double I-Beam framework with 3-layer seams throughout
- Tubular construction: Welded structural tube elements with 3-layer seams for added rigidity and shape retention
- Interlock 5 connection system: Three sets of secure, tamper-free 5-ring connections using Aquaglide's 2-Step Vario Strap system for safe integration into larger park configurations
- Halkey-Roberts valves: With tamper-proof caps for quick, effective inflation and deflation
- PRV pressure relief valves: Protects against catastrophic over-inflation in high-heat or high-sun conditions
- Meridian Mesh flooring: Uniquely configured mesh floor reduces cleaning requirements while providing cooling and splash underfoot
TRICKLER READY — OPTIONAL SLIDE IRRIGATION
The La Jefa TR is built with integrated pockets and attachment points for Aquaglide's optional Trickler Kit, a slide-face irrigation system that keeps the slide surface wet and fast throughout the day. The Trickler Kit is sold separately.
SAFETY REQUIREMENTS AND INSTALLATION NOTES
The La Jefa TR is a commercial-grade aquapark structure with specific anchoring and water depth requirements that must be met for safe operation:
- Minimum water depth: 10 feet 7 inches (3.27 meters) directly beneath and around the structure
- Minimum distance from shore: 15 feet (4.5 meters)
- Minimum total anchor weight: 8,000 lbs (3,629 kg)
- Anchor rings: 8 total
Anchor weight requirements reflect conditions including extreme weather, waves, and abnormal conditions. Aquaglide recommends consulting a dock and mooring specialist for anchor installation. The La Jefa TR is authorized for use only with Aquaglide-approved products and configurations. Use with third-party aquapark products or unapproved arrangements may increase risk of entrapment or injury.
WHY BUY FROM THE PRIME PINNACLE
The Prime Pinnacle is an authorized Aquaglide dealer serving commercial operators, resorts, summer camps, and private lakefront properties across the United States. We ship with free freight on qualifying orders and our FL-based, first responder-owned support team is available to assist with product selection, configuration planning, and post-purchase support at +1 (877) 477-2853 or support@theprimepinnacle.com.
SPECIFICATIONS
- Dimensions: 50 ft 5 in L x 20 ft W x 19 ft 10 in H (1,536 cm x 610 cm x 603 cm)
- Capacity: 12 Adults and 12 Children (24 users total)
- Max Weight Capacity: 2,400 lbs (1,089 kg)
- Product Weight: 1,415 lbs (642 kg)
- Minimum Water Depth: 10 ft 7 in (3.27 m)
- Minimum Distance from Shore: 15 ft (4.5 m)
- Minimum Anchor Weight Required: 8,000 lbs (3,629 kg)
- Anchor Rings: 8
- Accessory Attachment D-Rings: 5 per side on 3 sides
- Material: 0.90 mm / 31 oz Cx3 Duratex and Tritex
- Construction: Double I-Beam, Tubular, 3-layer seams
- Connection System: Interlock 5 with 2-Step Vario Strap
- Valves: Halkey-Roberts with tamper-proof caps and PRV
- Trickler Ready: Yes — built-in pockets for optional slide irrigation system
- Shipping: Ships in 3 boxes
WHAT'S INCLUDED
- Aquaglide La Jefa TR inflatable aquapark structure
- Halkey-Roberts inflation valves with tamper-proof caps
Not included — required for installation and operation:
- Trickler Kit (optional slide irrigation — sold separately)
- Anchor weights (minimum 8,000 lbs total required)
- Mooring lines
- Vario-Lock straps
- Inflation pump
Warranty: Aquaglide provides a 3-year limited warranty against manufacturing defects for the La Jefa TR. Contact The Prime Pinnacle at support@theprimepinnacle.com or +1 (877) 477-2853 for warranty claims and support.
