Aquaglide Helix Inflatable Aquapark Obstacle – Balance, Jump, 8-Person Capacity

SKU: 585227103
Your Price:
$5,899.99 $7,079.99
You Save: $1,180.00 17%
Add to wishlist
Checkout Secure
Free & Fast Shipping on orders over $200
Use code PRIME_START for an extra 5% off at checkout
No Sales Tax (exclusions apply)
Questions? Call Our Experts — 1-877-477-2853
AQUAGLIDE HELIX — BALANCE OBSTACLE AND JUMP FEATURE

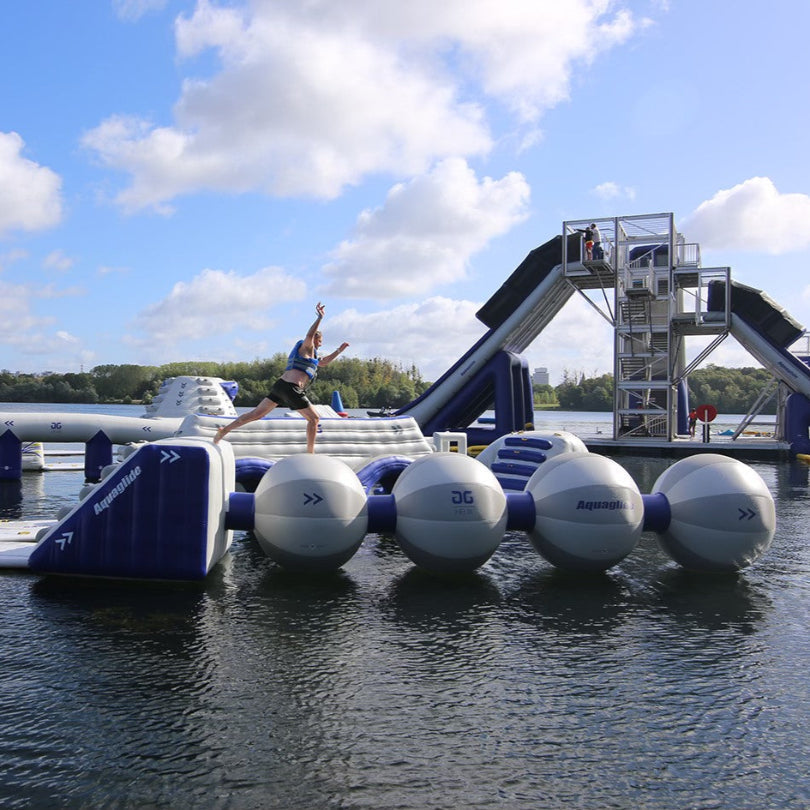

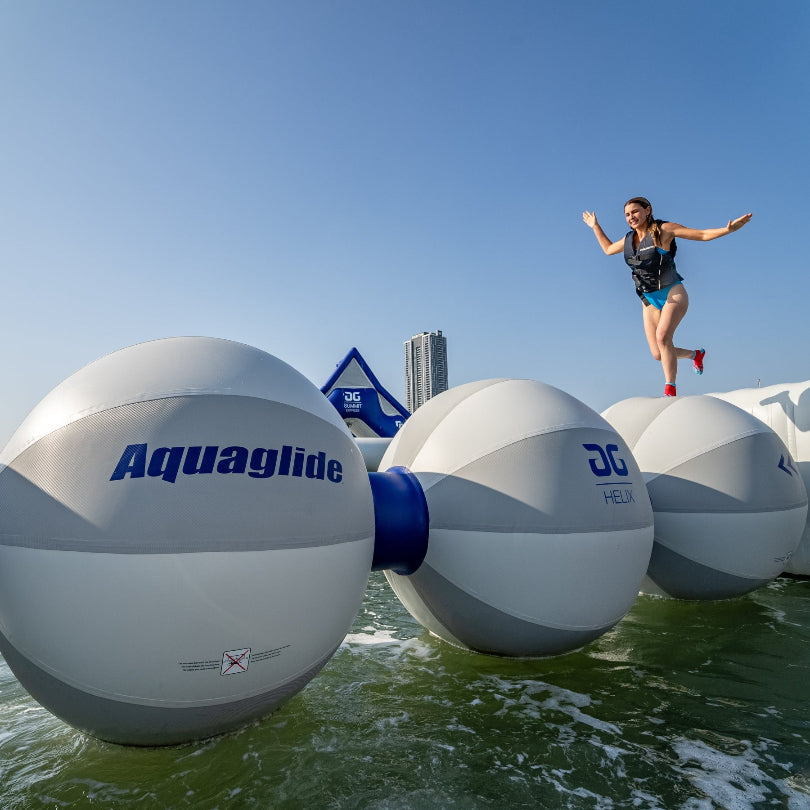

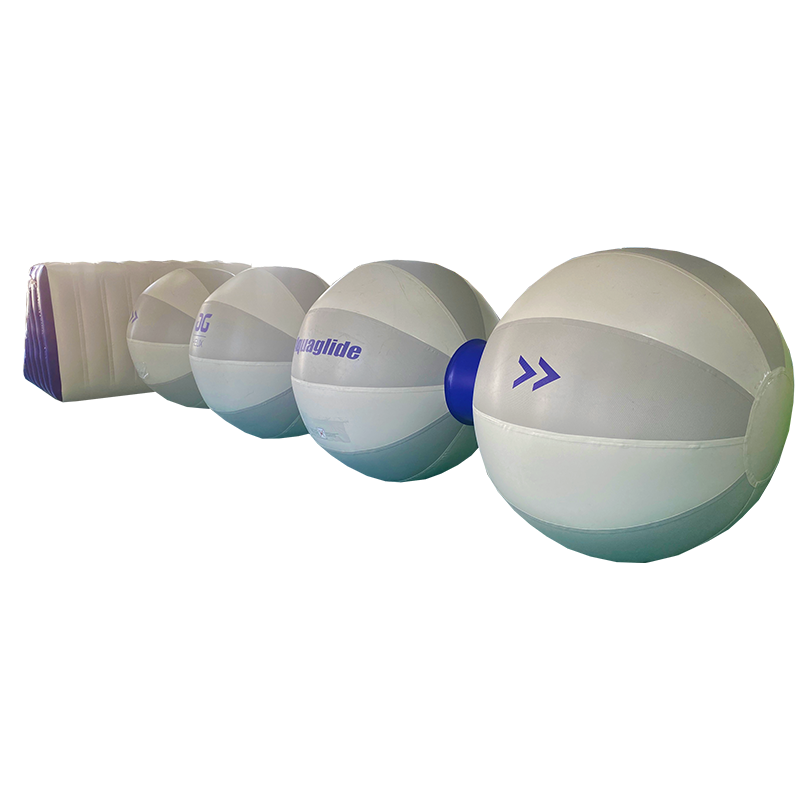

The Aquaglide Helix is one of the most visually distinctive and replayable features in the Aquaglide aquapark lineup. Built around a series of connected spheres, the Helix creates a rolling, unpredictable surface that challenges balance and coordination in a way that flat obstacles simply cannot. It looks approachable — and it is — but mastering it takes multiple attempts, which is exactly what keeps guests engaged and coming back for more.

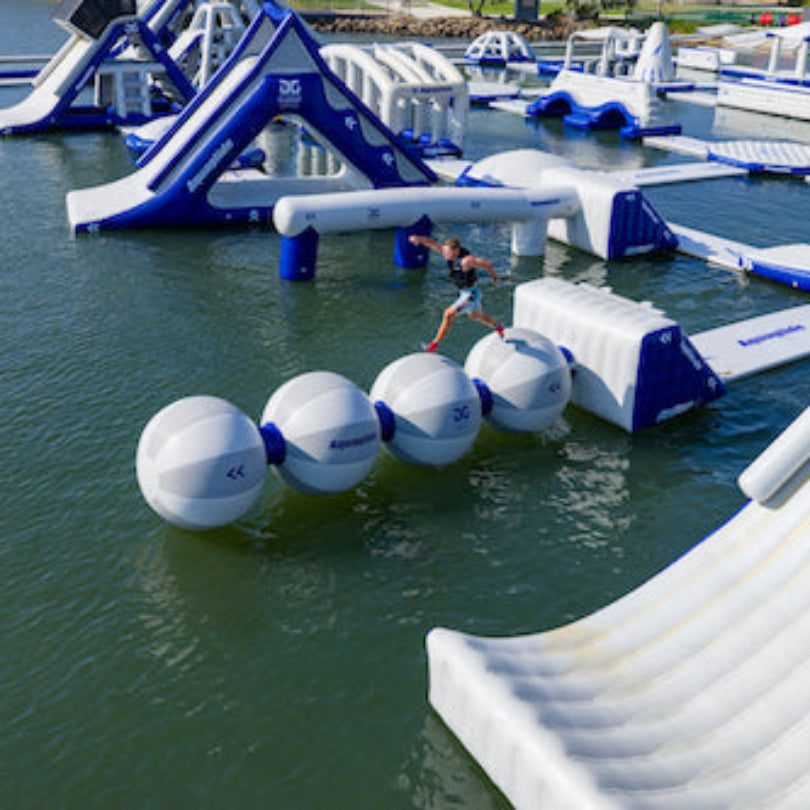

The Helix works equally well as a standalone waterfront feature or as a track component within a larger Aquaglide aquapark circuit. Aquaglide specifically recommends positioning it at the end of a track run, where its combination of balance challenge and jump station creates a natural high-energy finish point for the course.

WHAT RIDERS DO ON THE HELIX

The Helix is built around three overlapping activities that work across a wide range of ages and ability levels:

Balance: The connected sphere surface shifts and rolls under foot, creating an ongoing balance challenge that rewards persistence and practice

Obstacle: The structure's shape and layout present a physical obstacle that adds variety and complexity to any aquapark route

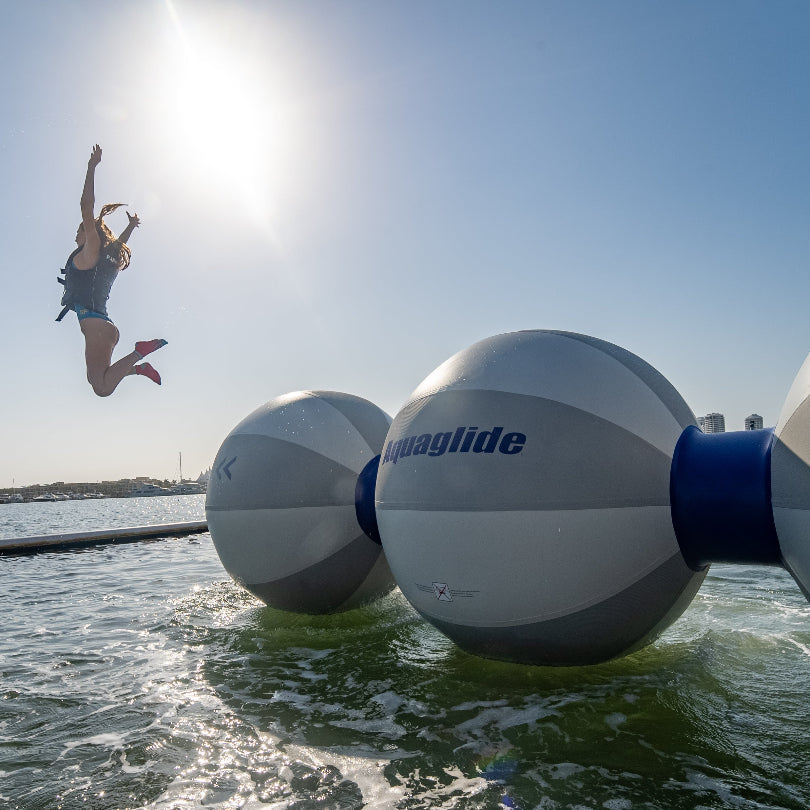

Jump: An integrated jump station adds a high-excitement option for users who want to launch off the structure rather than cross it

The combination of these three activities in a compact 30-foot structure gives operators meaningful play variety without requiring a large water footprint.

CONSTRUCTION AND MATERIALS

The Helix is built to Aquaglide's commercial Cx3 standard — the same specification used across their full aquapark product line:

Duratex Cx3: Premium 0.90mm / 31oz commercial-grade material optimized for durability, weld strength, and UV resistance

Tritex Cx3: Textured version of Duratex adding grip and cooling attributes on user contact surfaces

Double I-Beam construction: Extra-reinforced welded double I-Beam framework with 3-layer seams throughout

Tubular construction: Welded structural tube elements with 3-layer seams for shape retention and rigidity

Interlock 5 connection system: Three sets of secure, tamper-free 5-ring connections using Aquaglide's 2-Step Vario Strap system for integration into any aquapark circuit

Halkey-Roberts valves: With tamper-proof caps for quick, effective inflation and deflation

PRV pressure relief valves: Protects against catastrophic over-inflation in high-heat or high-sun conditions

TRiB CG solar-powered air pressure gauges: Integrated into main chambers for real-time pressure monitoring without manual checking — a commercial-grade feature that reduces maintenance time and helps operators keep the structure performing optimally

AQUAPARK INTEGRATION

The Helix connects to any Aquaglide aquapark component using the Interlock 5 system with Vario-Lock straps, making it easy to incorporate into new or existing park layouts. It is authorized for use only with Aquaglide-approved products and configurations. Use with third-party aquapark products or unapproved arrangements may increase risk of entrapment or injury.

SAFETY REQUIREMENTS AND INSTALLATION NOTES

Minimum water depth: 5.4 feet (1.66 meters) directly beneath and around the structure

Minimum distance from shore: 10 feet (3.0 meters)

Minimum total anchor weight: 2,000 lbs (1,000 kg)

Anchor rings: 4 total

Anchor weight requirements reflect extreme weather, wave, and abnormal conditions. Aquaglide recommends consulting a dock and mooring specialist for anchor installation.

WHY BUY FROM THE PRIME PINNACLE

The Prime Pinnacle is an authorized Aquaglide dealer serving commercial operators, resorts, summer camps, and private lakefront properties across the United States. Our FL-based, first responder-owned team is available to help with product selection, aquapark configuration planning, and post-purchase support at +1 (877) 477-2853 or support@theprimepinnacle.com.
Dimensions: 30.0 ft L x 8.2 ft W x 5.0 ft H (917 cm x 250 cm x 152 cm)

Capacity: 4 Adults and 4 Children (8 users total)

Max Weight Capacity: 800 lbs (363 kg)

Product Weight: 202.8 lbs (92 kg)

Minimum Water Depth: 5.4 ft (1.66 m)

Minimum Distance from Shore: 10 ft (3.0 m)

Minimum Anchor Weight Required: 2,000 lbs (1,000 kg)

Anchor Rings: 4

Accessory Attachment D-Rings: 5 rings on one side

Material: 0.90 mm / 31 oz Cx3 Duratex and Tritex

Construction: Double I-Beam, Tubular, 3-layer seams

Connection System: Interlock 5 with 2-Step Vario Strap

Valves: Halkey-Roberts with tamper-proof caps and PRV

Pressure Monitoring: TRiB CG integrated solar-powered air pressure gauges

WHAT'S INCLUDED

Aquaglide Helix inflatable aquapark obstacle structure
Halkey-Roberts inflation valves with tamper-proof caps

Not included — required for installation and operation:

Anchor weights (minimum 2,000 lbs total required)
Mooring lines
Vario-Lock straps
Inflation pump

Warranty: Aquaglide provides a 3-year limited warranty against manufacturing defects on the Helix. Contact The Prime Pinnacle at support@theprimepinnacle.com or +1 (877) 477-2853 for warranty claims and support.
