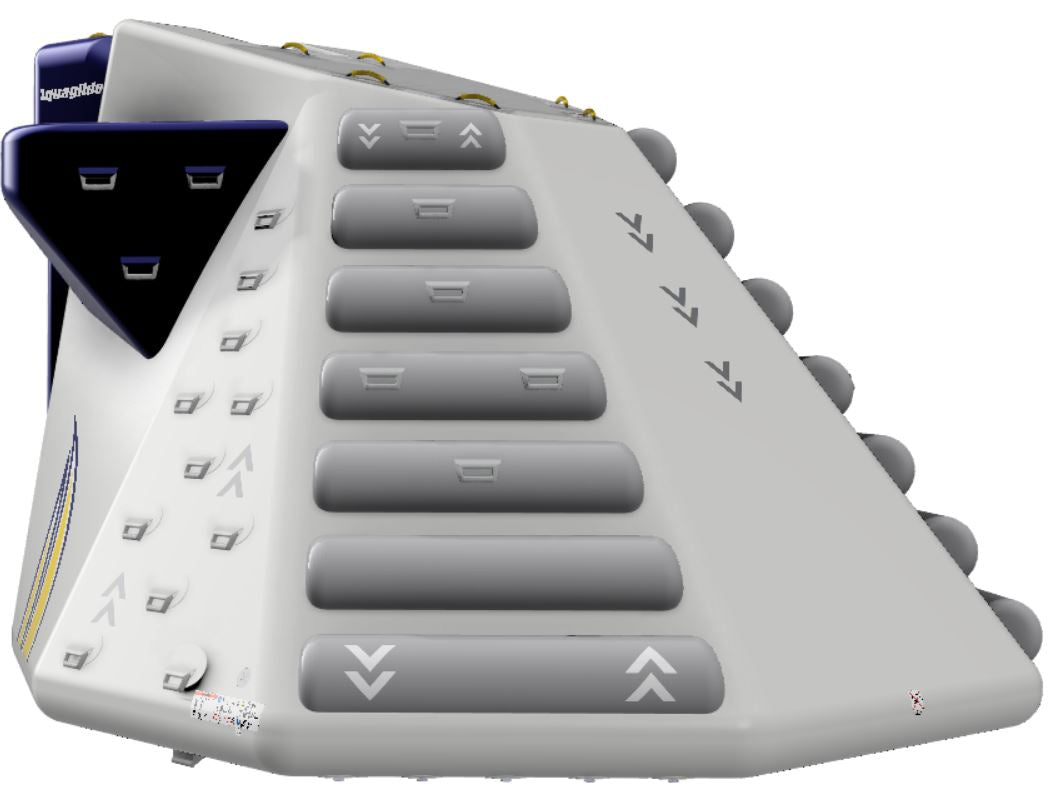

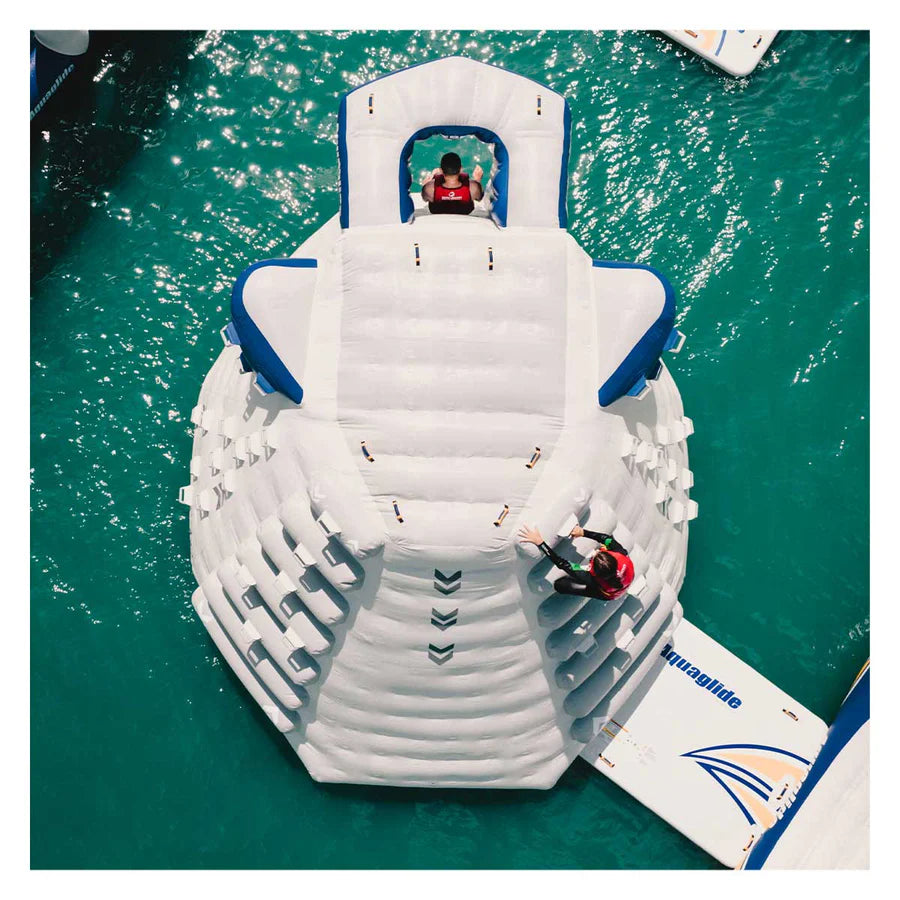

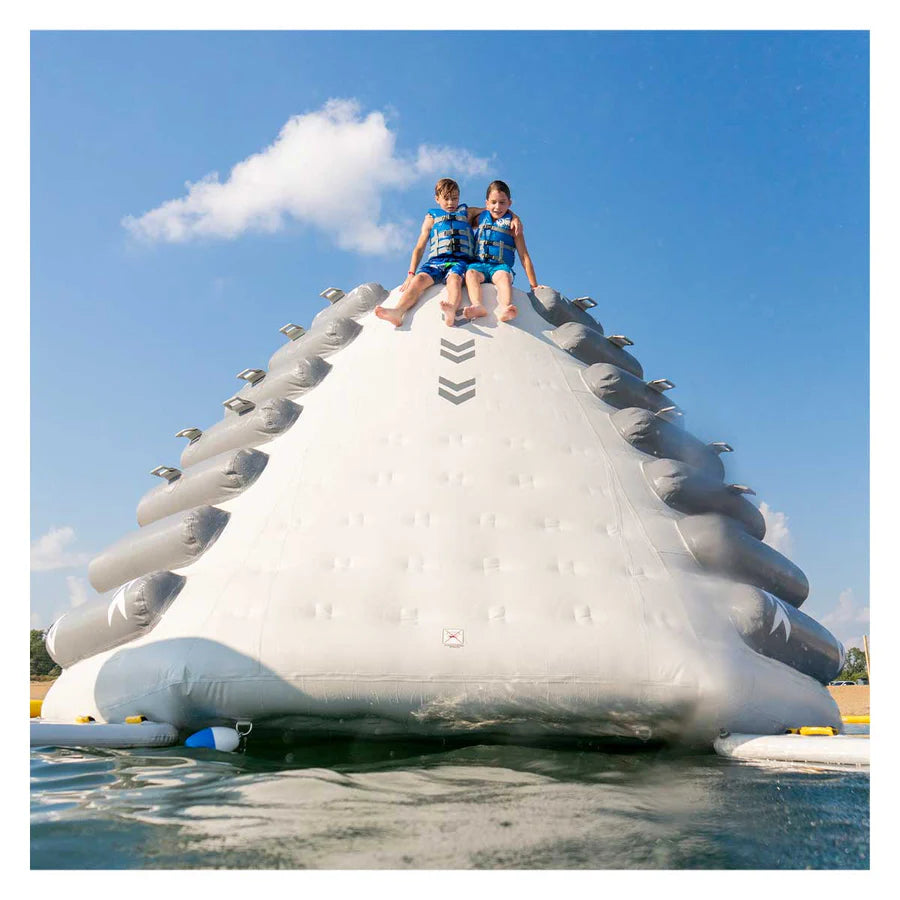

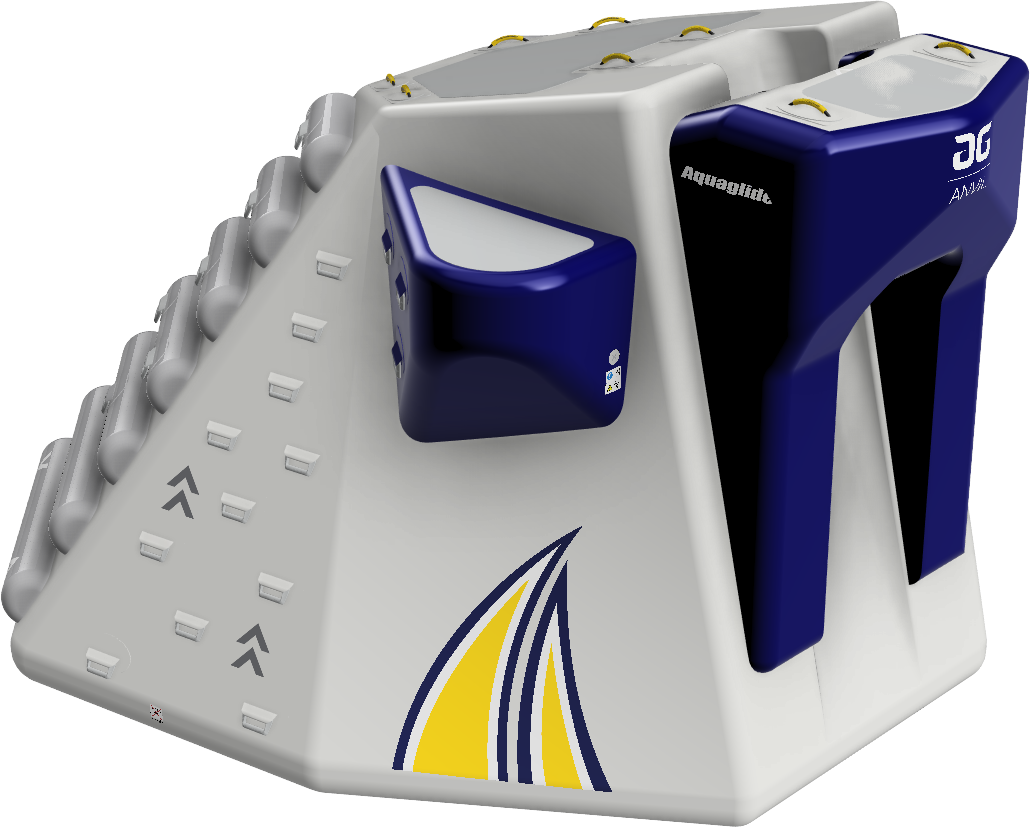

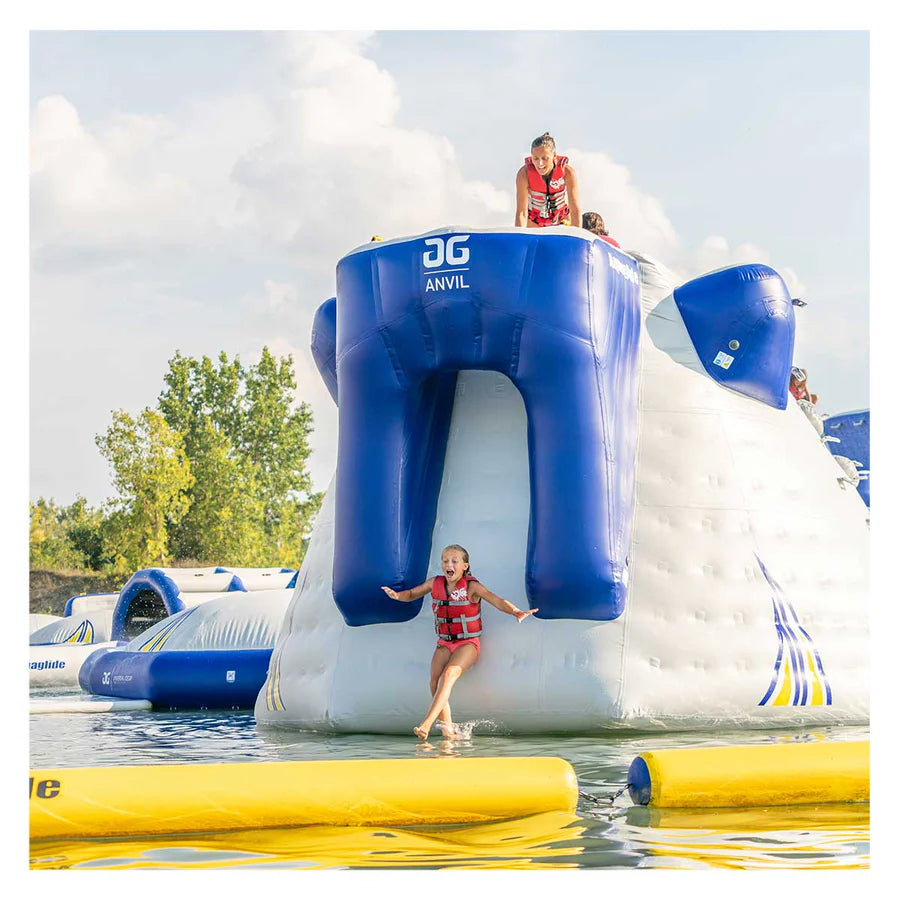

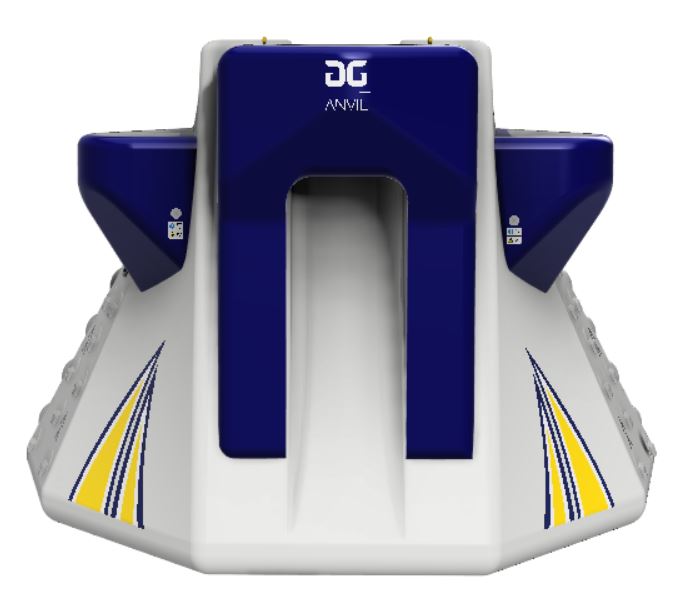

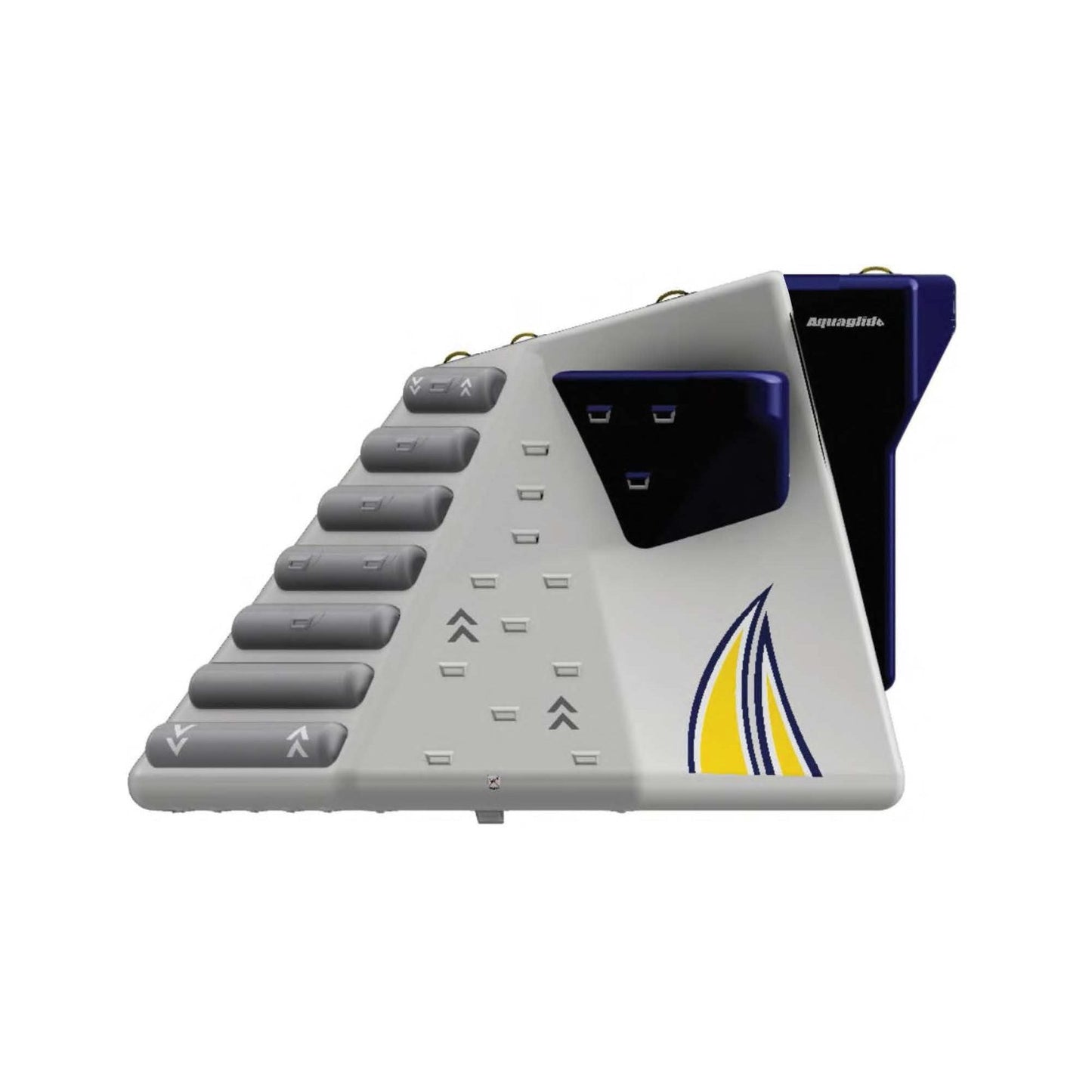

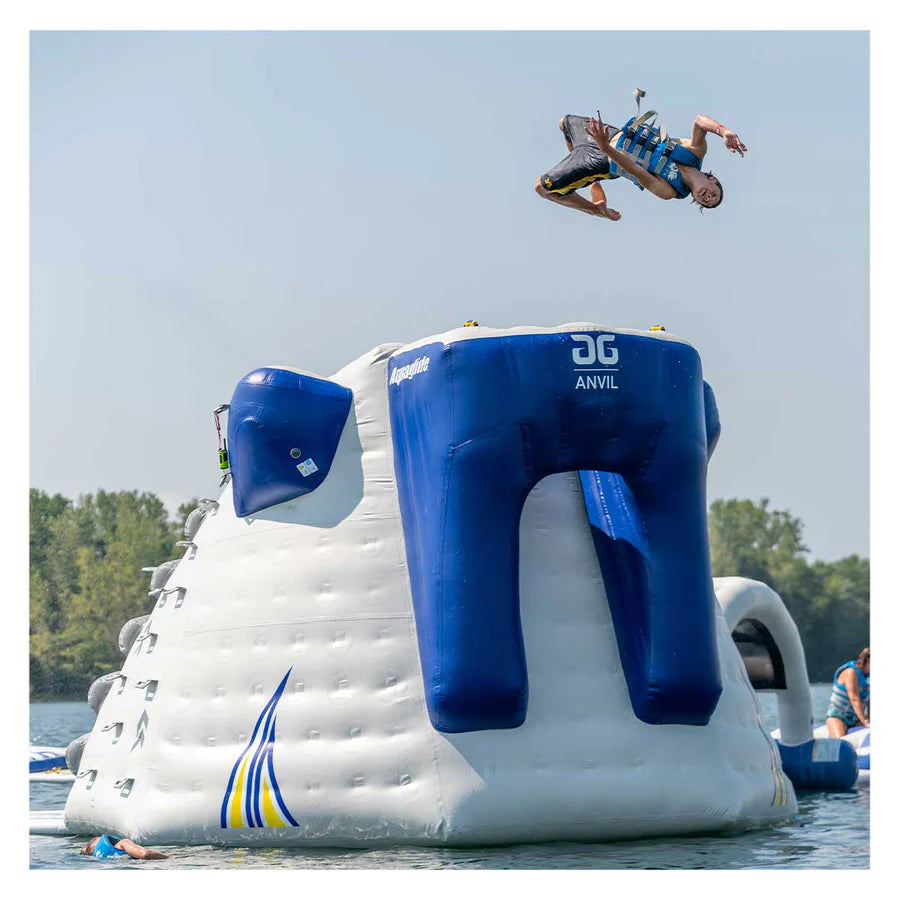

Ignite your aquapark with the Aquaglide Anvil, a massive corner jump feature engineered for serious thrills. Two novice up-down climbing routes, crafted with grippy, cooling Tritex material, guide users to three heart-pounding jump platforms at 8’ and a towering 10’ height. Prefer a slide? The main platform offers a high-velocity chute slide, while the inside corner delivers an electrifying 8’ drop slide. Advanced climbers can conquer two water-level climbing lines on the outer edges. With a capacity for 8 adults or children, the Anvil fits perfectly as a corner in Ring or Serpentine parks or stands alone as a showstopper. Built with rugged Duratex Cx3 and Double I-Beam construction, it connects on one or two sides via the Interlock 5-Ring system—perfect for water parks, resorts, or lakefront adrenaline zones!
Best For: Jumping, climbing, sliding, transit
Capacity: 8 Adults / 8 Children
Max Weight: 1,600 lb (726 kg)
Dimensions: 15’ L (457 cm) x 15’ W (457 cm) x 10’ H (305 cm)
Material: 0.90 mm / 31 oz Cx3 PVC
Minimum Water Depth: 8’ (2.43 m)
Minimum Distance from Shore: 10’ (3.0 m)
Minimum Anchor Weight: 13,200 lb (6,000 kg)
Anchor Rings: 6
Accessory D-Rings: 5 on two sides
Warranty: 3-year limited against manufacturing defects
Key Technologies:
I-Beam and Double I-Beam construction with 3-layer seams
Duratex Cx3 for durability and UV resistance
Tritex for traction and cooling
Interlock 5-Ring connections (2 sets) with 2-Step Vario Straps
Halkey-Roberts valves with PRV for safety
TRiB Chamber Gauge for air pressure monitoring
Aquaglide Anvil
Storage wrap
Repair kit
Not Included: Anchor weights, mooring lines, inflation pump
